The Salice AFCGXX3B front locking device is a robust, high-precision clip designed for secure and adjustable attachment of drawer fronts to Progressa, Progressa+, and Progressa+ Shelf runners. Engineered for simplicity and efficiency, this component ensures quick assembly and reliable performance across a wide range of furniture applications.
Thanks to its intuitive tool-free adjustment features, the AFCGXX3B allows for seamless side and depth positioning, ensuring perfect alignment and smooth operation of the drawer system. Crafted with durable materials and tested for long-term use, it’s the ideal solution for high-quality cabinetry where flexibility and stability are essential.
Key Features
-
✅ Universal Compatibility: Fits Salice Progressa, Progressa+, and Progressa+ Shelf runner systems
-

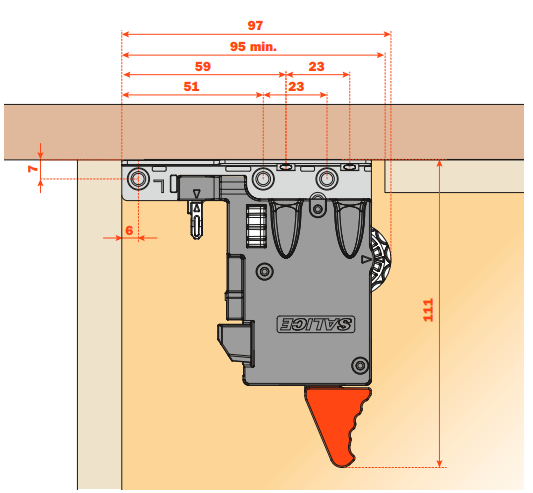

🔧 Tool-Free Adjustments:
-
Side: ±1.5 mm
-
Depth: ±3 mm
-
-
🛠 Durable Build: Made from steel and fiberglass-reinforced nylon for long-lasting reliability
-
🔩 Easy Installation:
-
Recommended pre-drill: Ø 2.5 mm
-
Fix with Ø 4 x 16 mm screws (not included)
-
-

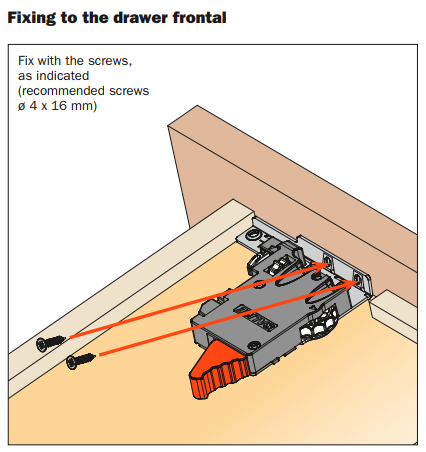

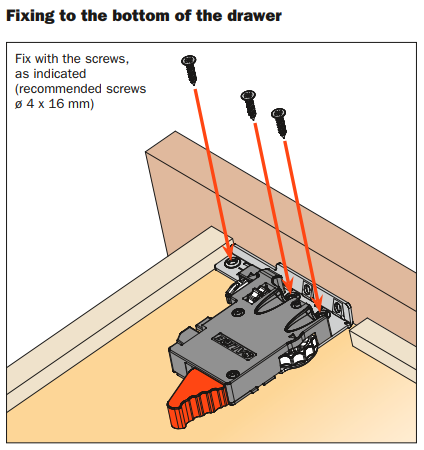

📐 Flexible Mounting: Can be fixed to either drawer bottom or front face
-
🧰 Optional Template: Compatible with Salice ASGD704U3XA drilling jig for perfect alignment
-
🇮🇹 100% Made in Italy

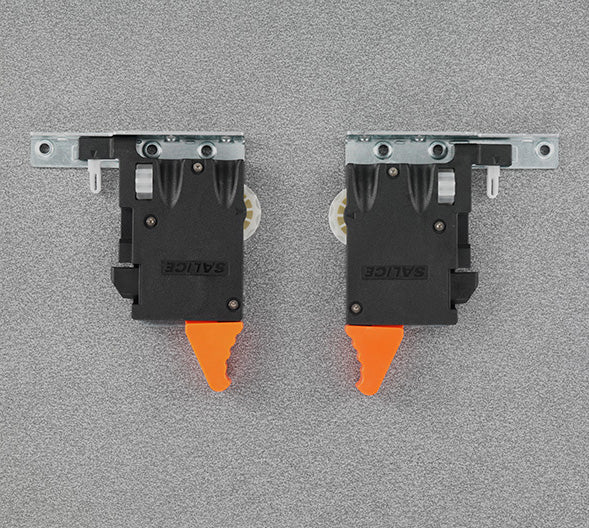

What’s Included
-
1x Right locking device
-
1x Left locking device
Sold as a pair.
