SKU: S05CQA3JE6XXV

Salice Conecta Hinge for Wooden Doors 10-12.5mm Overlay - CQA3JE

Vendor Salice
Regular price £43.95
per set
Sale price £43.95 Regular price
Sale Sold out
Unit price
/per
Tax included.
Hinge Finish:
Titanium
Nickel
Cover Finish:
Titanium
Black
White
Satin Chrome
Satin Gold
This is a pre order item. We will ship it when it comes in stock.
You may also need...

Most items available for same day despatch

Safe and secure checkout

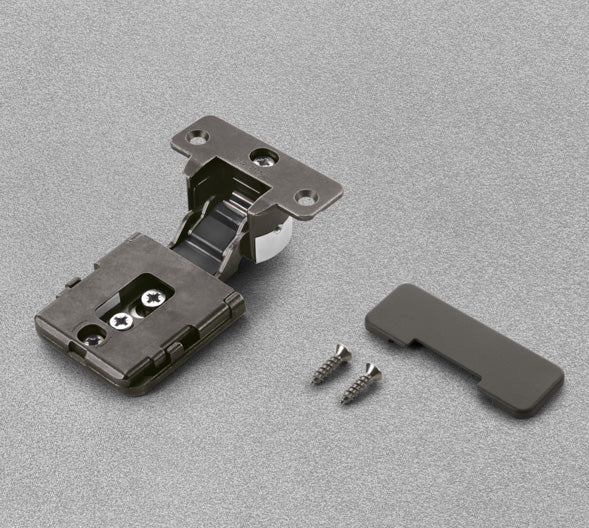

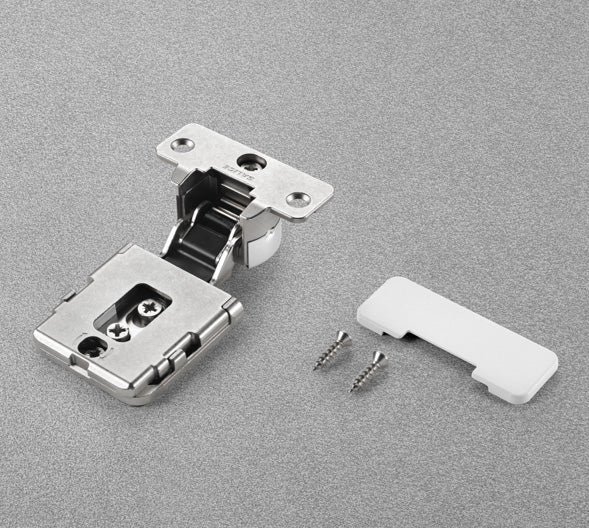

In the set:

  • 2 x Hinges
  • 2 x Flange Covers
  • Fixing Screws

The Salice Conecta Hinge for Wooden Doors is the perfect combination of innovation and elegance. Its concealed design provides a sleek and refined finish while maintaining precise fluid movement. It is perfect for heavier and larger doors due to its high build quality, and provides customisability to suit any unique aesthetic. This hinge ensures an ease of use combined with unparalleled functionality.

Hinge body available in two finishes:

  • Titanium (CQA3JE6XXV)
  • Nickel (CQA3JE9XXV)

Screw cover caps for hinge flange available in 5 finishes:

  • Titanium (PQFXAA6SN)
  • White (PQFXAA1SN)
  • Black (PQFXAA3SN)
  • Satin Chrome (PQFXAA9SN)
  • Satin Gold (PQFXAAWSN)

You can mix and match the finish of the hinge and cover cap.

Technical Features

  • Rapid fixing of the door to the cabinet side
  • 22 mm deep metal cup
  • Drilling distance fixed at 10 mm from the edge of the door to the centre of the hole
  • Diameter 35 mm
  • 94° opening
  • Sideways adjustment -1 +2 mm
  • Height adjustment -2,5 +2,5 mm
  • Depth adjustment 0 +3 mm
  • Concealed CQA3JE hinge with recessed insertion in the door and in the side.
    - Door overlay on the side 10 mm with holder DQG5
    - Door overlay on the side 12,5 mm with holder DQG3



Description

In the set:

  • 2 x Hinges
  • 2 x Flange Covers
  • Fixing Screws

The Salice Conecta Hinge for Wooden Doors is the perfect combination of innovation and elegance. Its concealed design provides a sleek and refined finish while maintaining precise fluid movement. It is perfect for heavier and larger doors due to its high build quality, and provides customisability to suit any unique aesthetic. This hinge ensures an ease of use combined with unparalleled functionality.

Hinge body available in two finishes:

  • Titanium (CQA3JE6XXV)
  • Nickel (CQA3JE9XXV)

Screw cover caps for hinge flange available in 5 finishes:

  • Titanium (PQFXAA6SN)
  • White (PQFXAA1SN)
  • Black (PQFXAA3SN)
  • Satin Chrome (PQFXAA9SN)
  • Satin Gold (PQFXAAWSN)

You can mix and match the finish of the hinge and cover cap.

Technical Features

  • Rapid fixing of the door to the cabinet side
  • 22 mm deep metal cup
  • Drilling distance fixed at 10 mm from the edge of the door to the centre of the hole
  • Diameter 35 mm
  • 94° opening
  • Sideways adjustment -1 +2 mm
  • Height adjustment -2,5 +2,5 mm
  • Depth adjustment 0 +3 mm
  • Concealed CQA3JE hinge with recessed insertion in the door and in the side.
    - Door overlay on the side 10 mm with holder DQG5
    - Door overlay on the side 12,5 mm with holder DQG3



Technical Downloads
