Please note fixing screws are not supplied with the hinges.

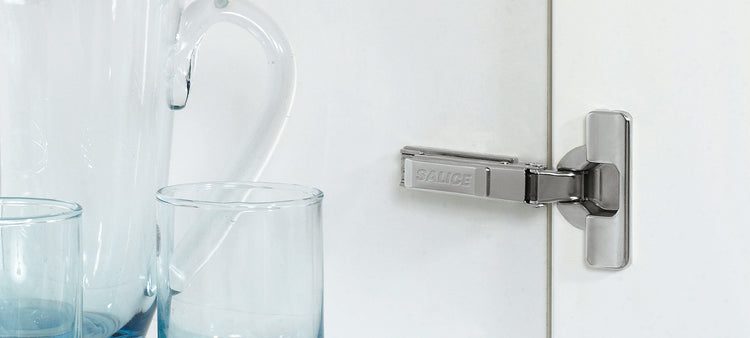

A standard sprung hinge compatible with all 200, 700 and DOMI snap-on hinge mounting plates.
0mm crank for full overlay applications.
A...
Description
This is the most common hinge found on most cupboards. It is designed for cupboards where the door fully overlays the frame of the cupboard, e.g. when the door is closed you cannot see ...
A standard sprung hinge compatible with all 200, 700 and DOMI snap-on hinge mounting plates.
Allows a cupboard door to open 165degrees.
Mounting Plates Are NOT Included And Must Be Ordered Se...
A standard sprung hinge compatible with all 200, 700 and DOMI hinge mounting plates.
Allows cupboard door to open 110degrees.
Mounting Plates Are NOT Included And Must Be Ordered Separately
F...
Description
This is a half overlay 9mm crank hinge. The hinge is sprung closing.
Two finishes available:
Nickel - C2A6G99
Titanium - C2A6G66
Tech Details
Half overlay hinge / 9mm crank
For doors...
Description
This is a quarter overlay 5mm crank hinge. The hinge is sprung closing.
Tech Details
Quarter overlay hinge / 5mm crank
For doors of medium weight and thickness (16-26mm)
35mm diameter ...
A standard sprung hinge compatible with all 200, 700 and DOMI snap-on hinge mounting plates.
Allows an inset cupboard door to open 165degrees.
Mounting Plates Are NOT Included And Must Be Ord...
A 40mm cup hinge for heavier or thicker doors. 0mm cranked arm for FULL overlay applications.
Cup drilling depth is 13mm
Works with all traditional 200 Series mounting plates and all DOMI sna...
An UNSPRUNG cabinet hinge for doors with a positive 90 degree angle.
11mm deep die cast cup, 35mm diameter.
165 degree opening
Unsprung hinges do not have a 'snap' closed feature and will ...
A 40mm cup hinge for heavier or thicker doors. 22mm cranked arm for INSET applications.
Cup drilling depth is 13mm
Works with all traditional 200 Series mounting plates and all DOMI snap-on mount...
A standard un-sprung hinge compatible with all 200, 700 and DOMI hinge mounting plates.
For use on taller door where four or more hinges may be required. In such circumstances you would fit two spr...
A standard sprung hinge compatible with all 200, 700 and DOMI snap-on hinge mounting plates.
Allows a cupboard door to open 165degrees.
Mounting Plates Are NOT Included And Must Be Ordered Se...
A 40mm cup hinge for heavier or thicker doors. 11mm cranked arm for HALF overlay applications.
Cup drilling depth is 13mm
Works with all traditional 200 Series mounting plates and all DOMI sn...
A 26mm cup MINI sprung hinge compatible with all 200, 700 and DOMI hinge mounting plates for 45 degree postive angled applications.
MINI hinges are typically used on bathroom cabinets and similar ...
A 26mm cup MINI sprung hinge compatible with all 200, 700 and DOMI hinge mounting plates for FULL overlay applications. 0mm cranked arm.
MINI hinges are typically used on bathroom cabinets and s...
