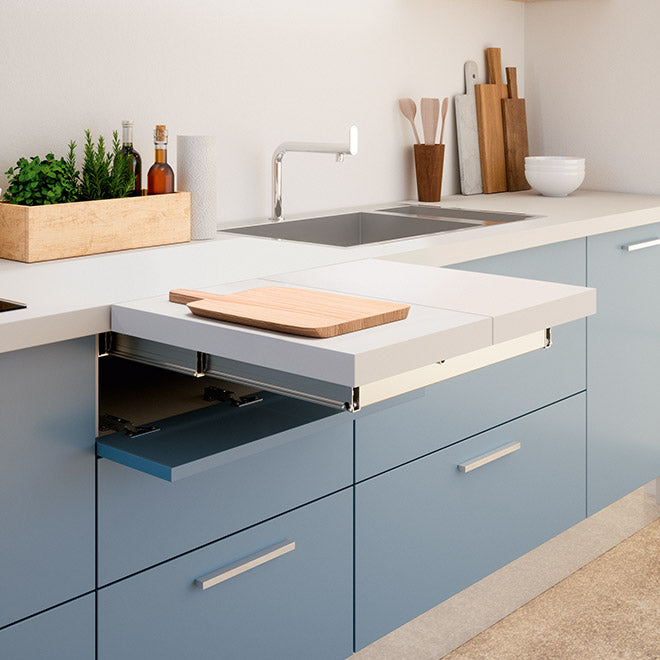

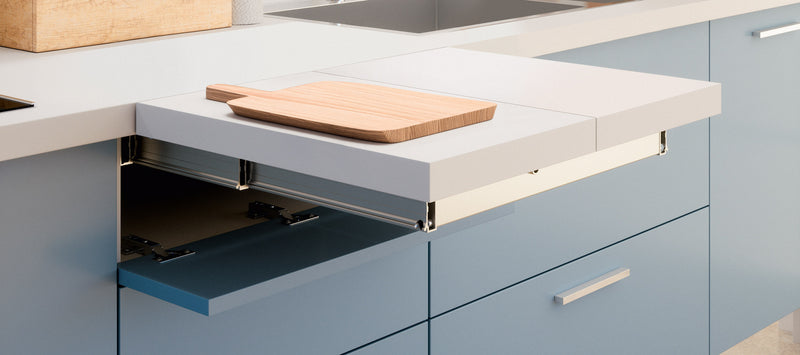

Enhance your kitchen with Salice Atim's Flip Top Pull-out drawer worktop - Frame Only, a system that extracts a book-style extension from a drawer and aligns it flush with your kitchen top. Perfect as a practical extra surface for breakfast, a quick meal or food preparation.

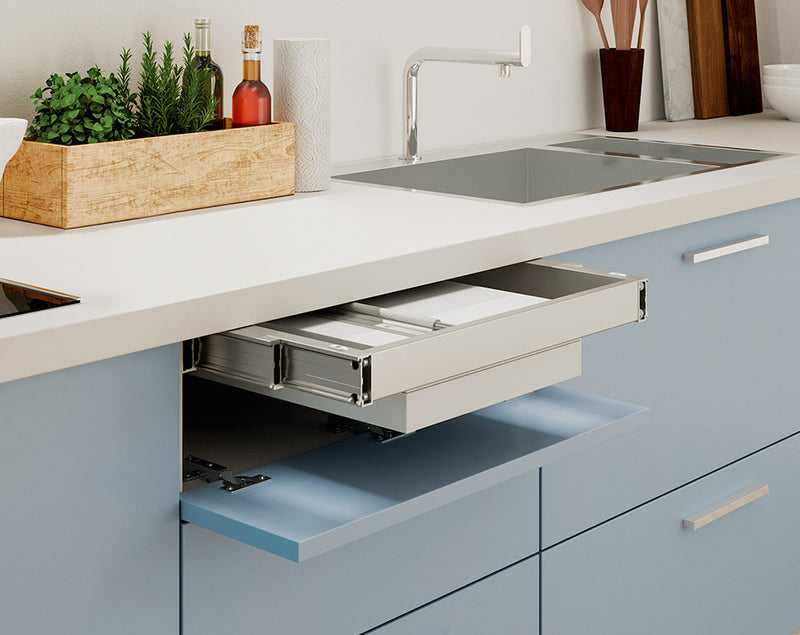

From the Salice Top collection, where the worktop takes centre stage: a clean, precise mechanism integrated directly into the surface. Simply add a top of your choice to match your surrounding surfaces.
Dimensions
Letters refer to the technical drawing in the product images.
| 450mm | 600mm | 900mm | |
|---|---|---|---|
| M - Cabinet width | 450mm | 600mm | 900mm |
| P - Depth | min 540mm | min 540mm | min 540mm |
| H - Height | min 120mm | min 120mm | min 120mm |
| S1 - Side thickness | 15/20mm | 15/20mm | 15/20mm |
| E - Top opening | 480mm | 480mm | 480mm |
| Z - Top width | min 450mm | min 600mm | min 900mm |
| S - Top thickness | min 16mm | min 16mm | min 16mm |
Supplied as frame only, ready for a tabletop of your choice. Manufacturer's technical information and assembly video available; contact us if you'd like a copy or need help choosing the right size for your cabinet.
