Download the Excessories Hanger Rail Technical Pamphlet
These are designed to be used with the straight style end supports here.
Designed to provide extra support when using a Salice Excessories Hanger rail over 1200mm in length or for loads over 15kg. Priced and sold each.
Manufactured from die-cast aluminium finished with an epoxy-based powder in Metal Grey Brown finish.
Two fixing types available:
- VE80DAHA1133B - Top Fixing
- VE80DAHA1333B - Bottom Fixing
Top Fixing:

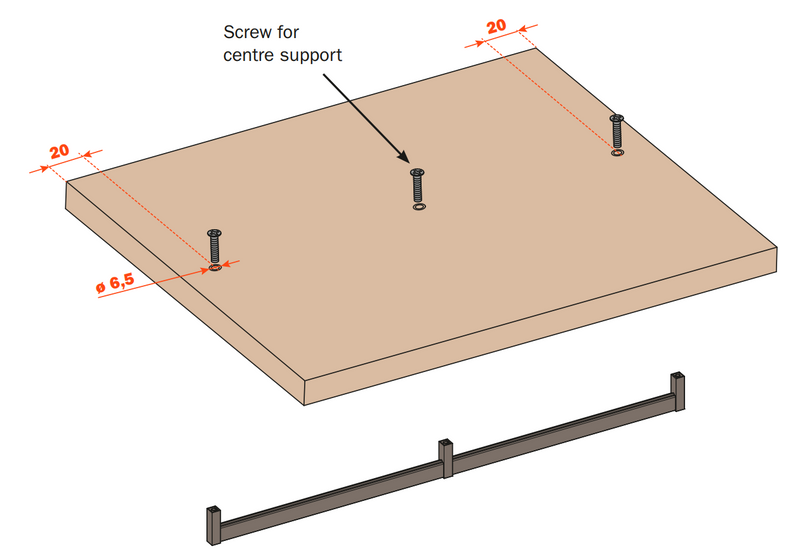

Designed for to be fixed with M6 machine screws from the top of the wardrobe or shelf within the wardrobe. Screws not supplied. Required size = M6 x (material thickness + 10/15mm).
Bottom Fixing:

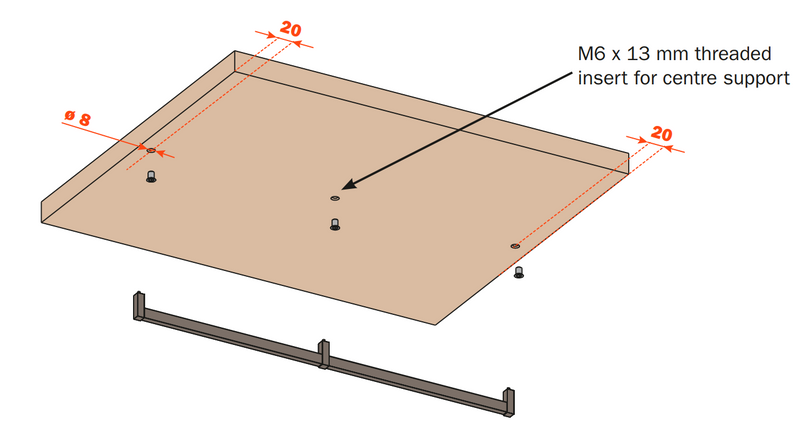

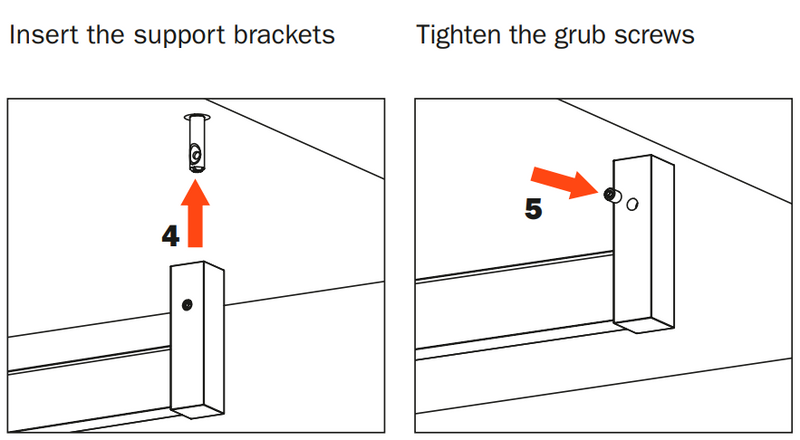

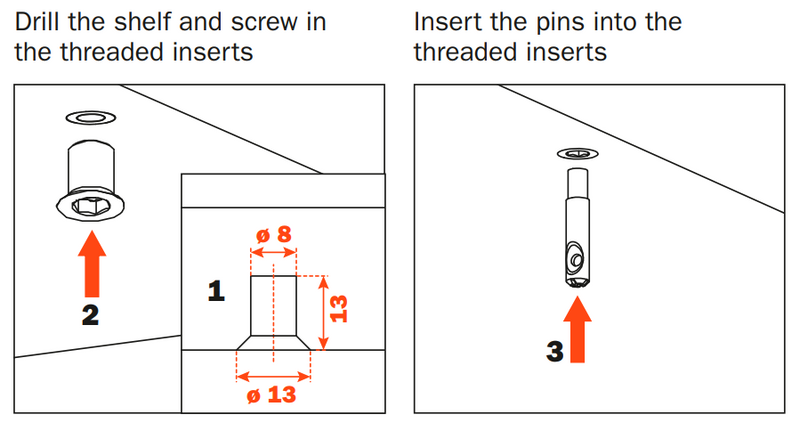

Fixed with threaded inserts and pins. Please see the pictures on the page.
