Description

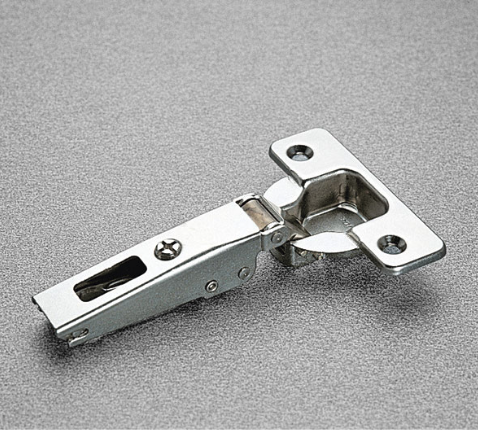

This is a quarter overlay 5mm crank hinge. The hinge is sprung closing.

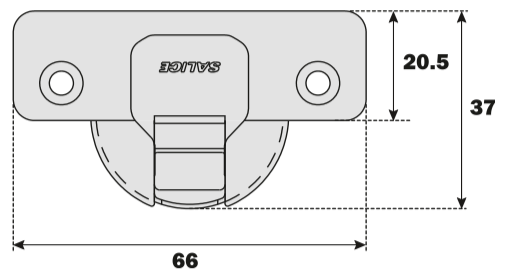

Tech Details
- Quarter overlay hinge / 5mm crank
- For doors of medium weight and thickness (16-26mm)
- 35mm diameter cup
- 11mm deep cup
- 110 Degree opening
- Possible drilling distance (K): 3mm - 6mm

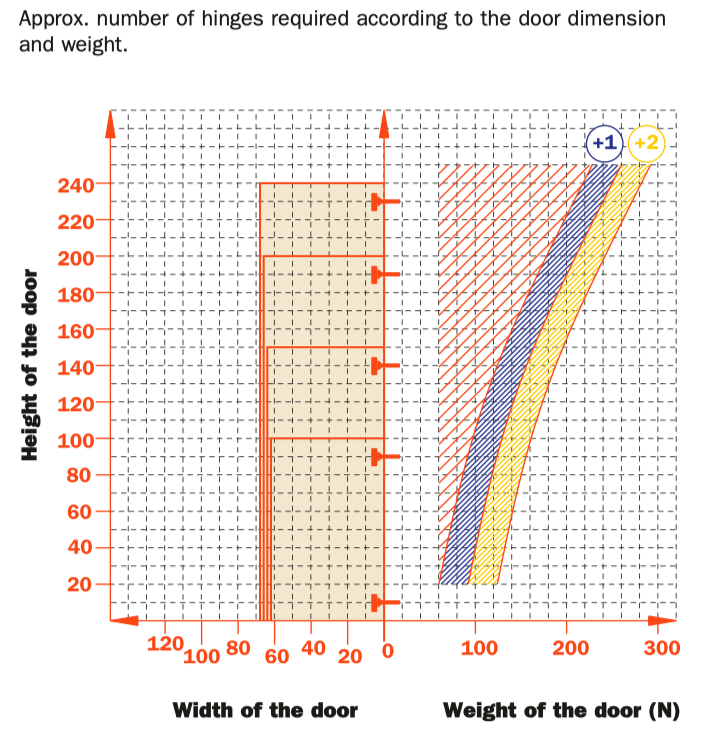

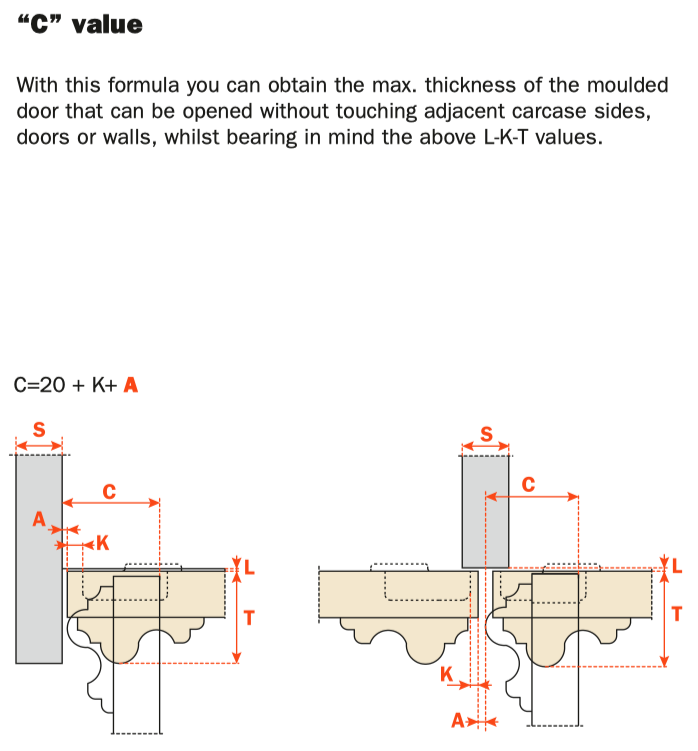

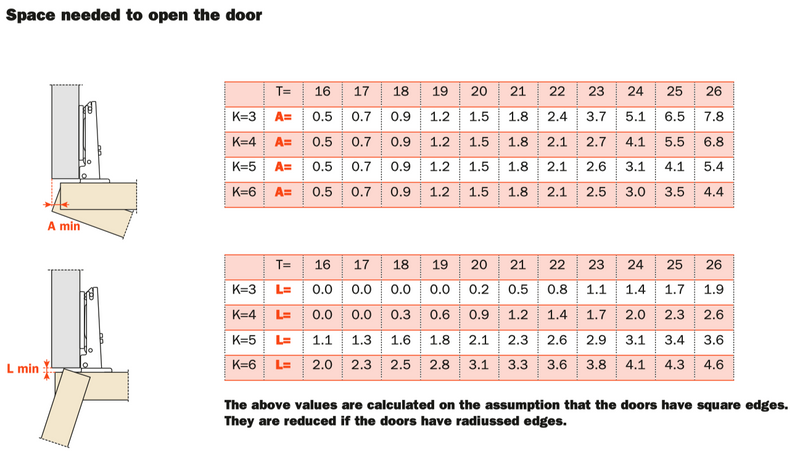

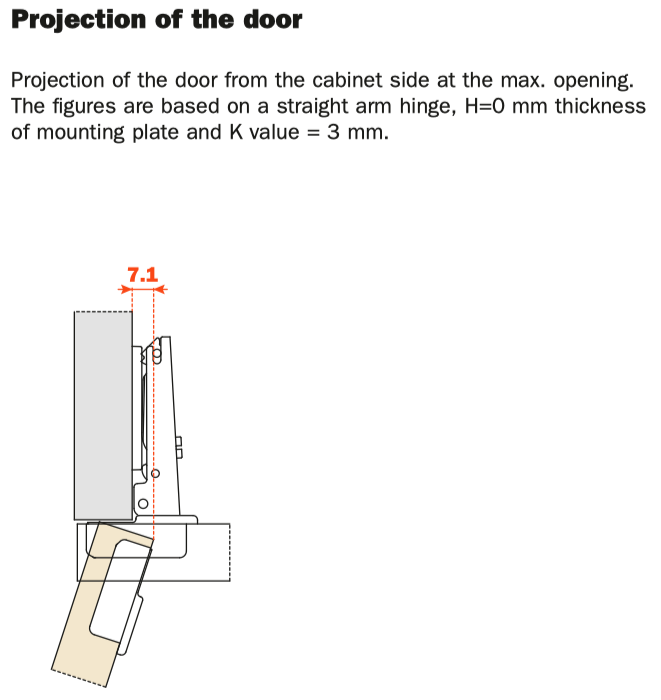

Downloads
Which mount plate?

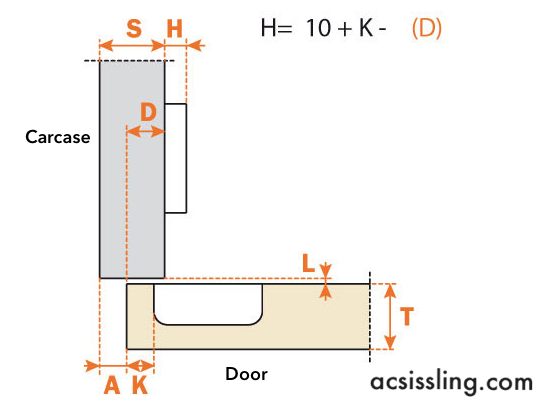

This hinge is compatible with all screw-on and clip-on mount plates. To work out the height of the mounting plate required please consult the image below.
Hinge ID
If you are unsure which hinge you have please forward a few photos of your hinge to sales@salicedirect.com
Description
Downloads
Which mount plate?
Description
This is a quarter overlay 5mm crank hinge. The hinge is sprung closing.
Tech Details
- Quarter overlay hinge / 5mm crank
- For doors of medium weight and thickness (16-26mm)
- 35mm diameter cup
- 11mm deep cup
- 110 Degree opening
- Possible drilling distance (K): 3mm - 6mm
Downloads
Which mount plate?
This hinge is compatible with all screw-on and clip-on mount plates. To work out the height of the mounting plate required please consult the image below.
Hinge ID
If you are unsure which hinge you have please forward a few photos of your hinge to sales@salicedirect.com
