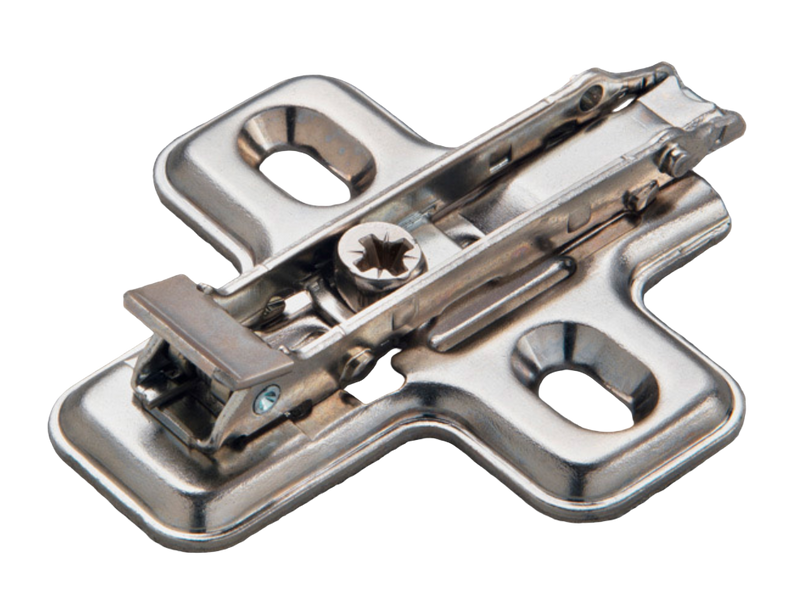

The basic pressed steel clip-on Mount Plate of the DOMI snap-on system.
Hight adjustment is by elongated screw holes, requiring the fixing screws to be slackened off and then retightened.
These plates are suitable for hinge series 200, 400, 700, F and M.
Requires 3.5mm / 6g countersunk woodscrews (not supplied)
Available in three effective heights:
BAV3M09F - 0mm - Typically used for FULL and 1/4 Overlay applications.
BAV3M39F - 3mm - Typically used for FULL, 1/4 and 1/2 Overlay applications.
BAV3L69F - 6mm - Typically used for INSET door applications.
Description
The basic pressed steel clip-on Mount Plate of the DOMI snap-on system.
Hight adjustment is by elongated screw holes, requiring the fixing screws to be slackened off and then retightened.
These plates are suitable for hinge series 200, 400, 700, F and M.
Requires 3.5mm / 6g countersunk woodscrews (not supplied)
Available in three effective heights:
BAV3M09F - 0mm - Typically used for FULL and 1/4 Overlay applications.
BAV3M39F - 3mm - Typically used for FULL, 1/4 and 1/2 Overlay applications.
BAV3L69F - 6mm - Typically used for INSET door applications.

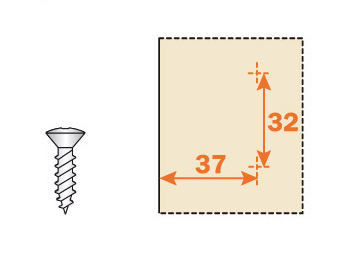

Snap-on Mount Plate Fixing Instructions
