Description

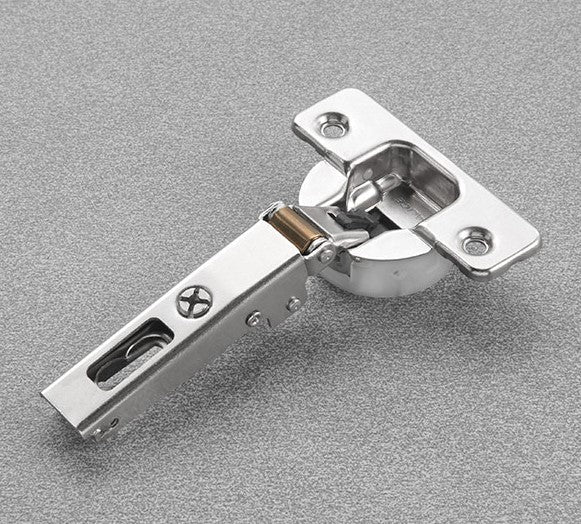

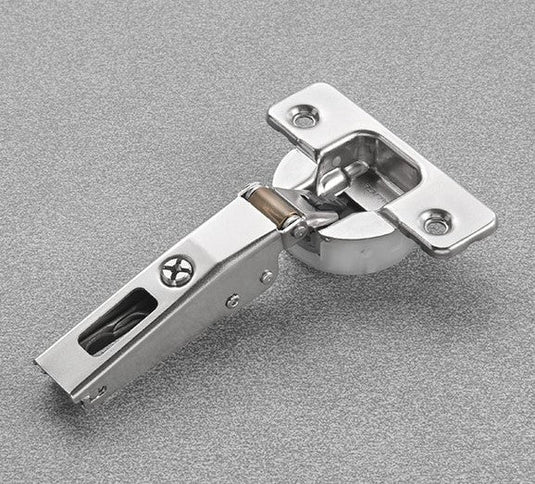

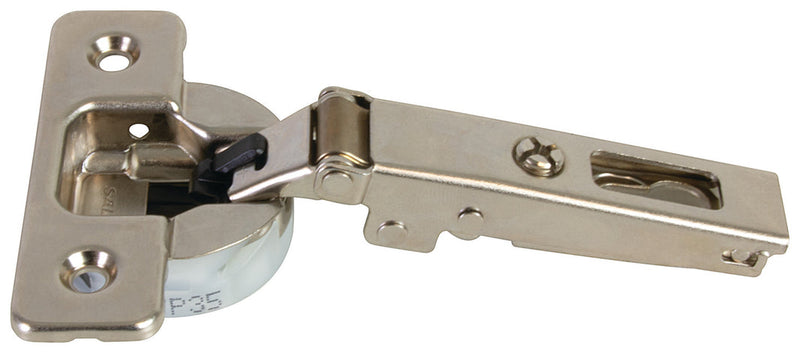

The Salice Silentia+ Series 700 range is an integrated soft close hinge designed for standard doors between 16-26mm thick. The new Silentia+ system is operated by twin silicone-oil dampers housed in the hinge cup. The decelerating effect is adjusted by using a simple switch.
The hinge allows the door to soft close quietly and smoothly whilst still presenting a tidy finish with no adaptors required.
This is the most common hinge found on most cupboards. It is designed for cupboards where the door fully overlays the frame of the cupboard, e.g. when the door is closed you cannot see or can only see a fraction of the cupboard frame.
Tech Details
- Full overlay hinge - 0mm crank

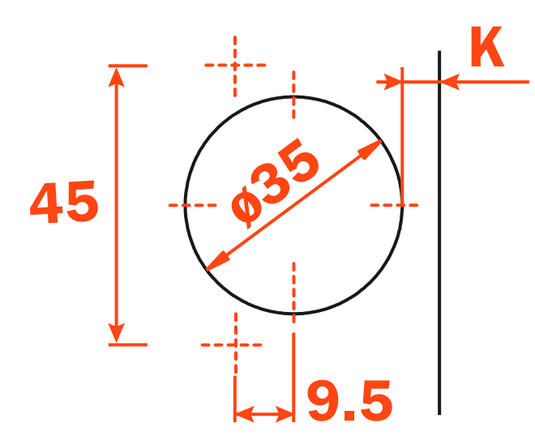

- 45mm screw centres
- Wood screw fixing (not supplied)
- To suit door thickness 16-26mm

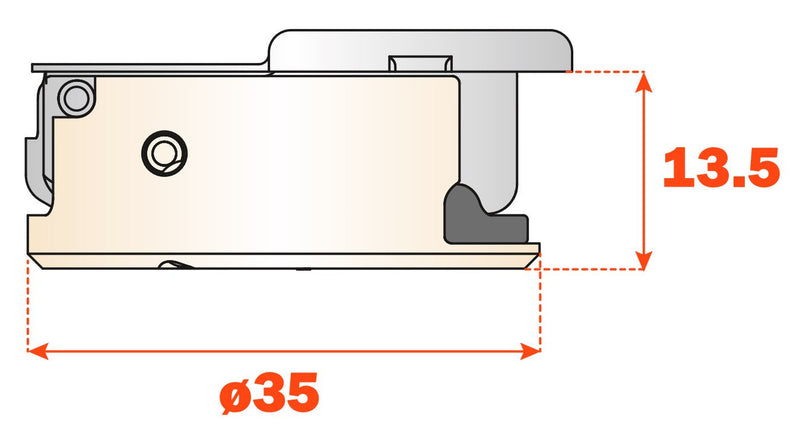

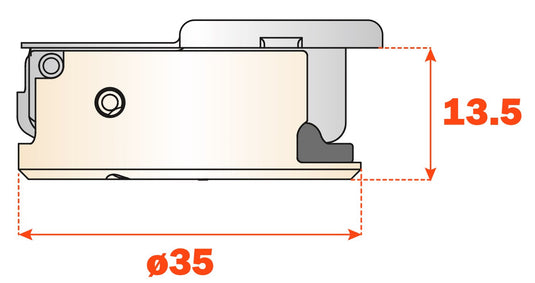

- 35mm diameter cup
- 13.5mm deep cup
- 110 Degree opening
- Possible drilling distance (K): 3mm - 6mm
Downloads
Which mount plate?

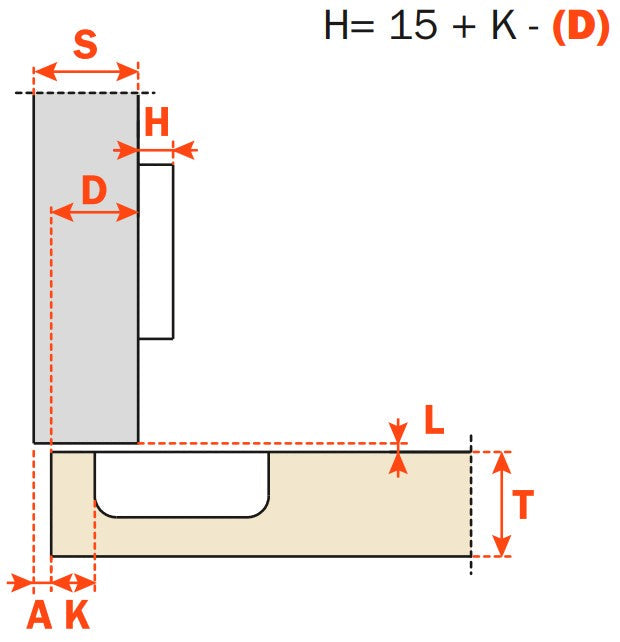

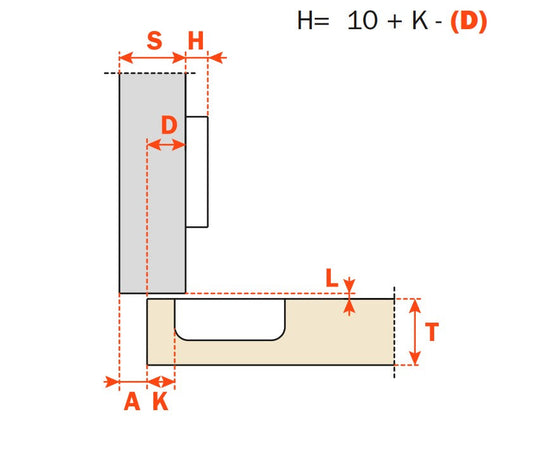

This hinge is compatible with all screw-on and clip-on mount plates. To work out the height of the mounting plate required please consult the image below.
Hinge ID
If you are unsure which hinge you have please forward a few photos of your hinge to sales@salicedirect.com
