SKU: S05BAR3R06

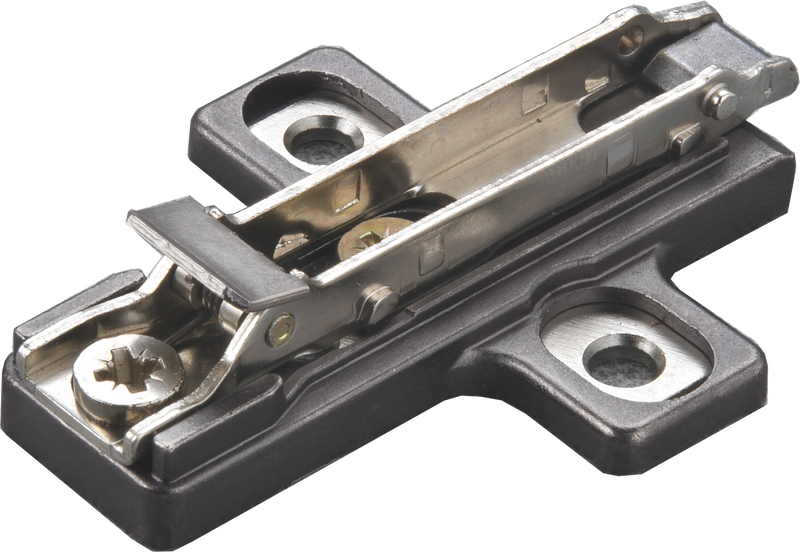

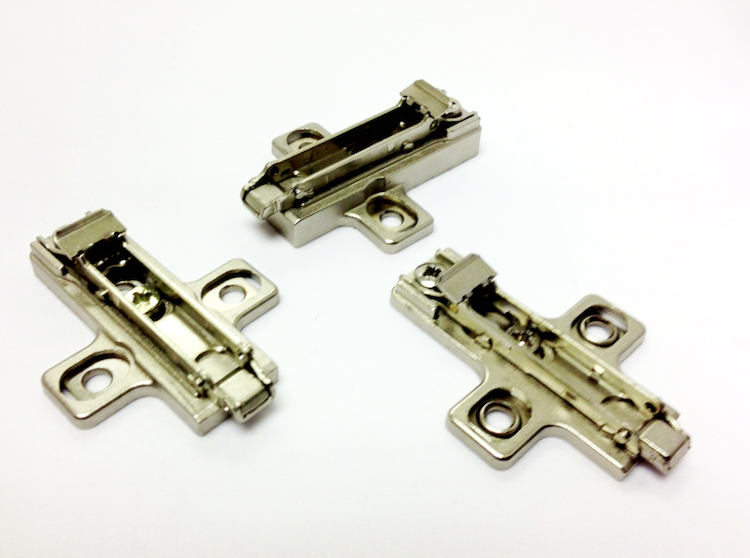

Salice Diecast Clip-On Mount Plates - BAR3R Series

Vendor Salice
Regular price £1.68
each
Sale price £1.68 Regular price
Sale Sold out
Unit price
/per
Tax included.
Size:
Finish:
Nickel
Titanium
This is a pre order item. We will ship it when it comes in stock.
You may also need...

Most items available for same day despatch

Safe and secure checkout

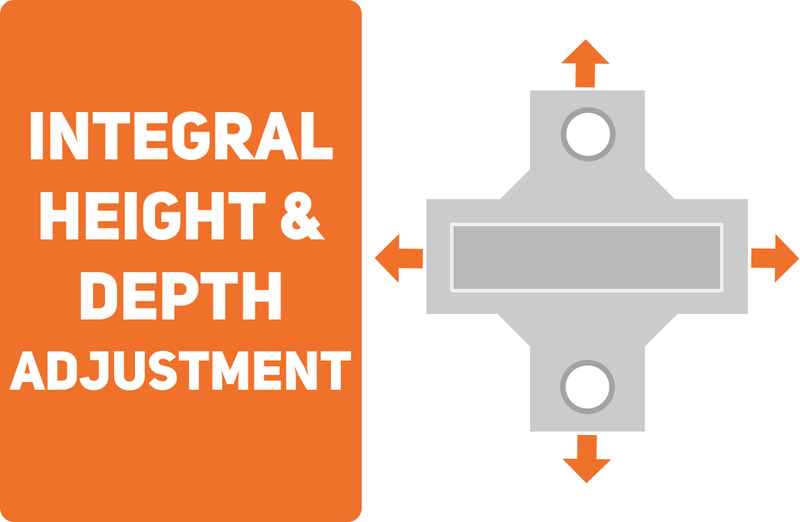

The 'Rolls Royce' of mounting plates they offer a good range of integral cam-action vertical adjustment and simple snap-on fitting of the hinge arm.

These plates are suitable for hinge series 200, 400, 700, F and M.

Requires 3.5mm / 6g countersunk woodscrews (not supplied)

Available in five effective heights:

  • BAR3R09 - 0mm - Typically used for FULL and 1/4 Overlay applications.
  • BAR3R39 - 3mm - Typically used for FULL, 1/4 and 1/2 Overlay applications.
  • BAR3R69 - 6mm - Typically used for INSET door applications.
  • BAR3R99 - 9mm
  • BAR3RC9 - 12mm

Available in two finishes:

  • Nickel
  • Titanium (0 & 3mm size only)

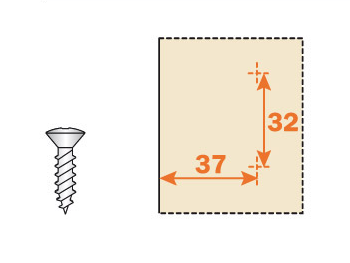

Screw holes to be drilled 37mm from edge of cabinet.

Description

The 'Rolls Royce' of mounting plates they offer a good range of integral cam-action vertical adjustment and simple snap-on fitting of the hinge arm.

These plates are suitable for hinge series 200, 400, 700, F and M.

Requires 3.5mm / 6g countersunk woodscrews (not supplied)

Available in five effective heights:

  • BAR3R09 - 0mm - Typically used for FULL and 1/4 Overlay applications.
  • BAR3R39 - 3mm - Typically used for FULL, 1/4 and 1/2 Overlay applications.
  • BAR3R69 - 6mm - Typically used for INSET door applications.
  • BAR3R99 - 9mm
  • BAR3RC9 - 12mm

Available in two finishes:

  • Nickel
  • Titanium (0 & 3mm size only)

Screw holes to be drilled 37mm from edge of cabinet.

Snap-on Mount Plate Fixing Instructions
