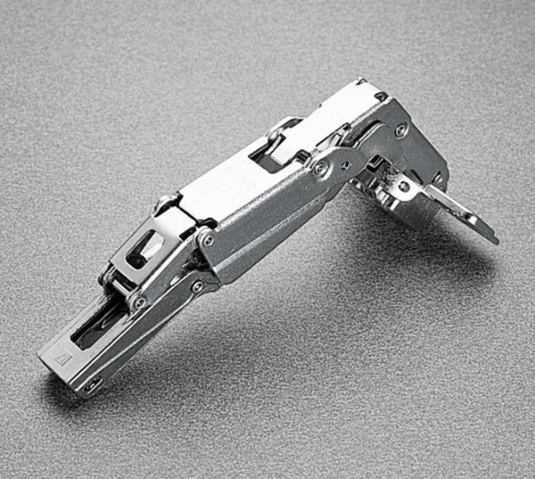

The Salice Series 200 sprung hinge is an ideal solution for doors between 16-26mm thick.

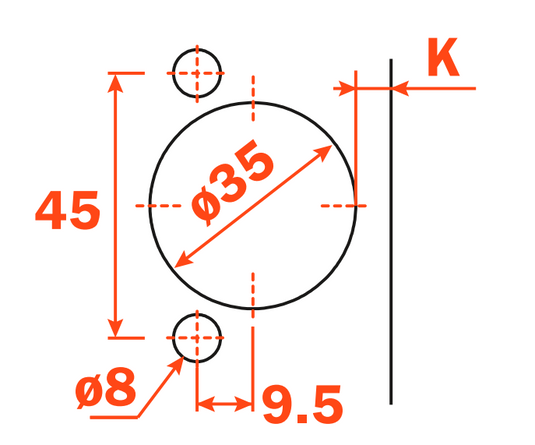

Fixing Centres: 45mm
Fixing Method: 8mm Knock-in dowels
For technical information please see the Downloads tab above.
The wide-opening angle allows greater ease of access in tighter spaces and allows all the cupboard to be accessed.
The full overlay hinge is suitable for all doors where the door fully overlays the cabinet, so that when the door is closed, you can see none or a few mm of the frame.
We recommend using the BAR3R or BARGR series of mount plates with these hinges. You will usually require a 0mm height mount plate with this hinge.
If you are unsure which hinge you have please forward a few photos of your hinge to sales@salicedirect.com
