A sprung corner cabinet hinge for door to door corner installation with a positive 90 degree angle.

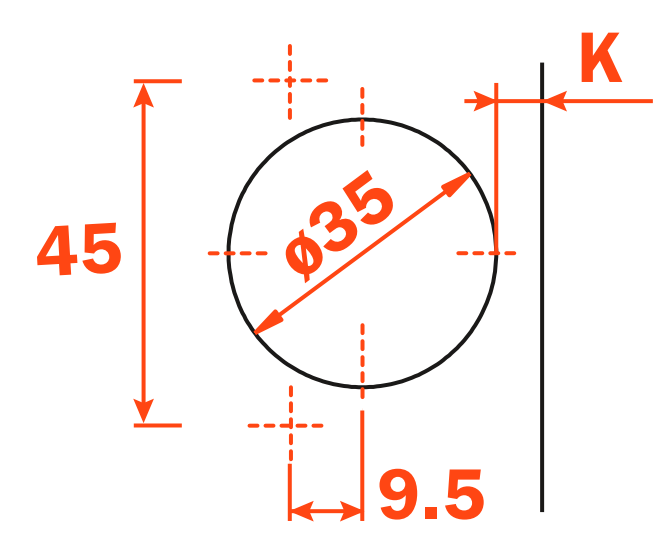

11mm deep die cast cup, 35mm diameter.
45mm Screw Centres
70 degree opening.
Compatible with all series 200, 700 and DOMI snap-on mounting plates
Mounting Plates Are NOT Included And Must Be Ordered Separately. 0mm high Mount Plates are usually required.
Description
A sprung corner cabinet hinge for door to door corner installation with a positive 90 degree angle.
11mm deep die cast cup, 35mm diameter.
45mm Screw Centres
70 degree opening.
Compatible with all series 200, 700 and DOMI snap-on mounting plates
Mounting Plates Are NOT Included And Must Be Ordered Separately. 0mm high Mount Plates are usually required.
