The Series 100 range of hinges are designed for thins as its 8mm cup depth means it can used on even the thinnest of doors.
It is designed for cupboards where the door fully overlays the frame of the cupboard, e.g. when the door is closed you cannot see or can only see a fraction of the cupboard frame.
Mount Plates must be ordered seperatley, we recommend the BAR3R range as they have a full range of adjustment once installed.

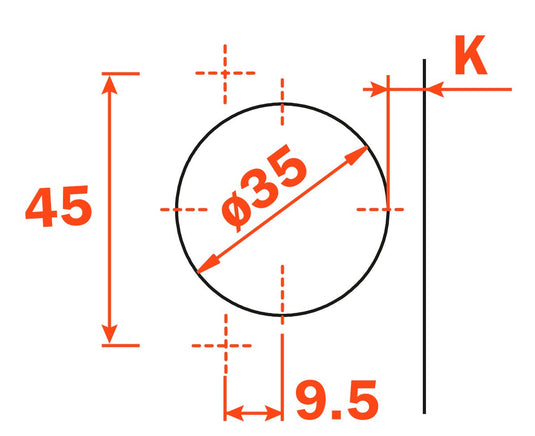

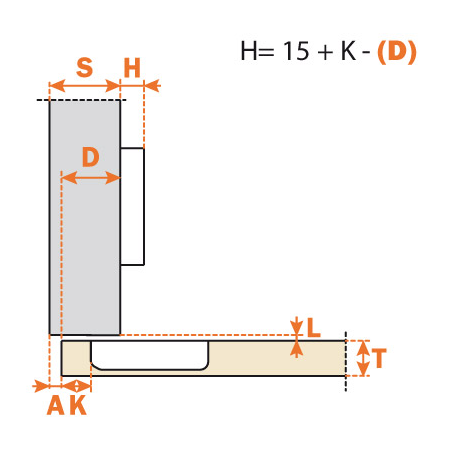

This hinge is most commonly used with a 0 or 3mm mount plate, but please consult the diagram to the left to calculate the height needed.
If you are looking to replace existing hinges or mount plates, you can always send us a photo by clicking this link.
