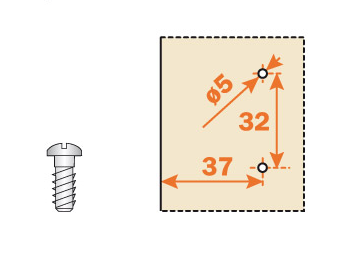

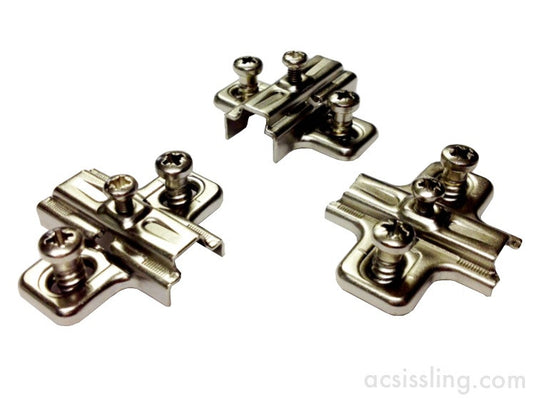

This budget pressed steel Mount Plate range does not offer any vertical adjustment to the hinge other than the eliptic fixing slot. Pre-mounted EURO fixing screws for pre-drilled 5mm diameter holes at 32mm centres.
Suitable for hinge ranges 200, 400, 700, 900, F & M.
Available in four effective heights:
B2VGHS9/17 - -2mm - Typically used for FULL and 1/4 Overlay applications.
B2VGH09/17 - 0mm - Typically used for FULL and 1/4 Overlay applications.
B2VGH39 /17- 3mm - Typically used for FULL,1/4 and 1/2 Overlay applications.
B2VGH69/17 - 6mm - Typically used for INSET door applications.
