SKU: S05C2BKAE9

Salice Silentia+ Series 200 Soft Close Full Overlay 155 Degree Hinge - 48mm Centres - Dowel Fix

Vendor Salice
Regular price $11.00
each
Sale price $11.00 Regular price
Sale Sold out
Unit price
/per
Finish:
Nickel
Titanium
This is a pre order item. We will ship it when it comes in stock.
You may also need...

Most items available for same day despatch

Safe and secure checkout

Tech Details:

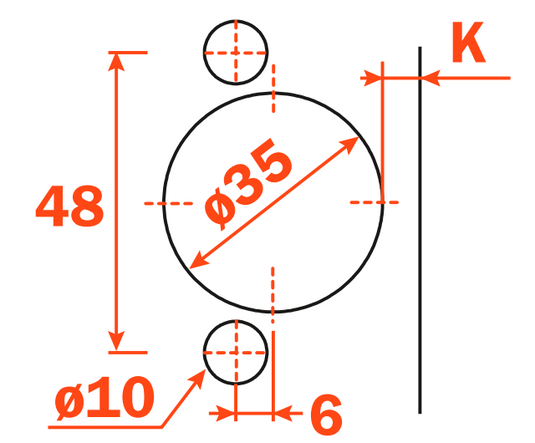

  • 48mm centres
  • 10mm Dowel Fix
  • Hinges with integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
  • Hinges for thick doors 16 mm min

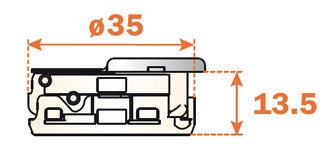

  • 35mm diameter cup
  • 13.5mm deep cup
  • 155° opening

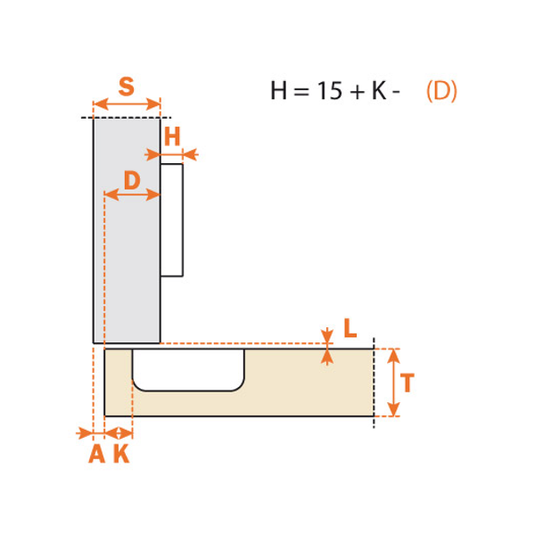

  • Possible drilling distance on the door (K): from 3 to 9 mm
  • Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates

The Salice Silentia+ Series 200 is an ideal solution for doors between 16-26mm thick.

Available in two finishes:

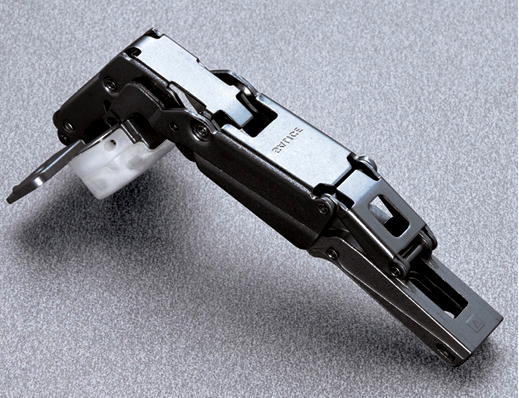

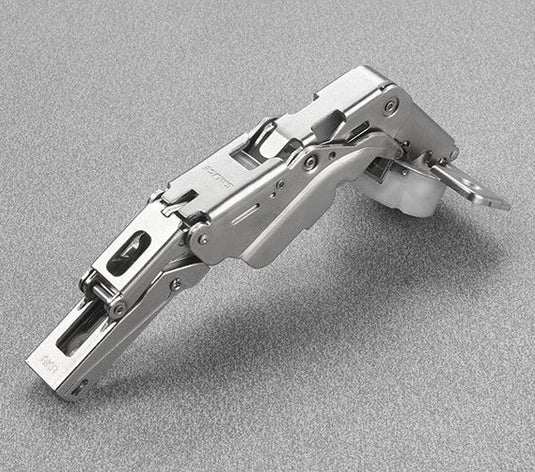

  • Nickel - C2BKAE9
  • Titanium - C2BKAE6

The hinge allows the door to soft close quietly and smoothly whilst still presenting a tidy finish with no adaptors required. The wide-opening angle allows greater ease of access in tighter spaces and allows all the cupboard to be accessed.

The full overlay hinge is suitable for all doors where the door fully overlays the cabinet, so that when the door is closed, you can see none or a few mm of the frame.

We recommend using the BAR3R or BARGR series of mount plates with these hinges. You will usually require a 0mm height mount plate with this hinge.

If you are unsure which hinge you have please forward a few photos of your hinge to sales@salicedirect.com
