SKU: S05C7R6PE9

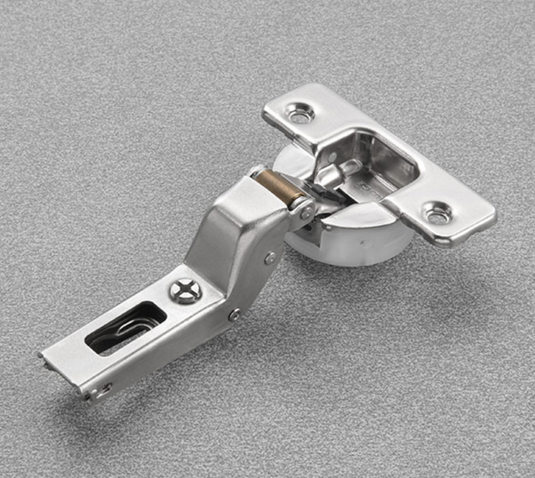

Salice Silentia+ Series 700 Soft Close Inset 110° Hinge 45mm Centres Dowel Fix - C7R6PE9

Vendor Salice
Regular price $6.00
each
Sale price $6.00 Regular price
Sale Sold out
Unit price
/per
Finish:
Nickel
This is a pre order item. We will ship it when it comes in stock.
You may also need...

Most items available for same day despatch

Safe and secure checkout

Description

The Salice Silentia+ Series 700 range is an integrated soft close hinge designed for standard doors between 16-26mm thick. The new Silentia+ system is operated by twin silicone-oil dampers housed in the hinge cup. The decelerating effect is adjusted by using a simple switch.

The hinge allows the door to soft close quietly and smoothly whilst still presenting a tidy finish with no adaptors required.

This is the most common hinge found on most cupboards. It is designed for cupboards where the door fully overlays the frame of the cupboard, e.g. when the door is closed you cannot see or can only see a fraction of the cupboard frame.

Tech Details

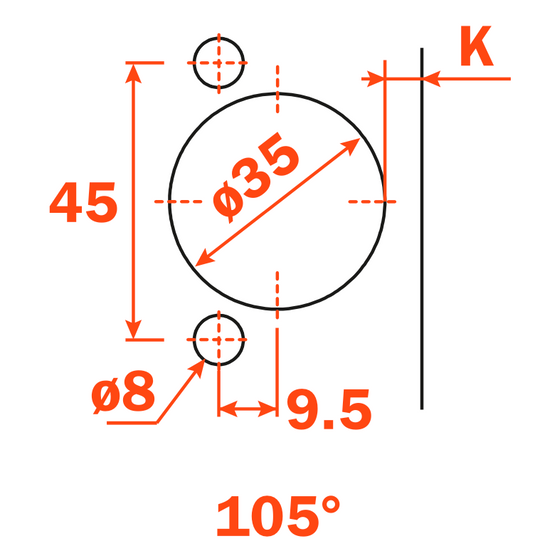

  • Inset Applications - 17mm crank
  • 45mm fixing centres
  • 8mm dowel fixing with screws (supplied)
  • To suit door thickness 16-26mm

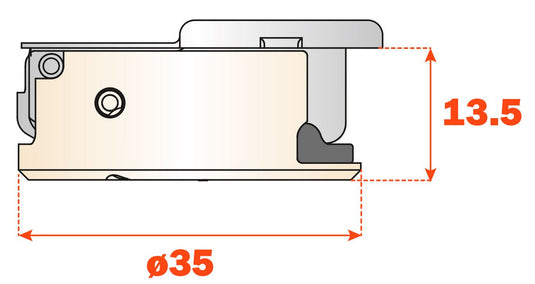

  • 35mm diameter cup
  • 13.5mm deep cup
  • 110 Degree opening

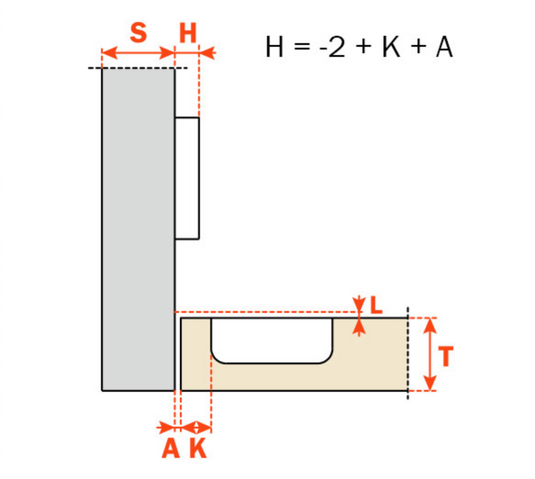

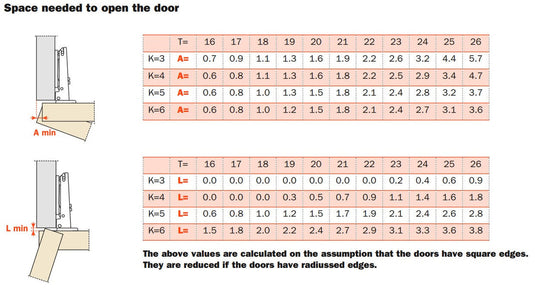

  • Possible drilling distance (K): 3mm - 6mm
Downloads

 Technical Features

 Silentia+ Switch Instructions

Hinge ID

If you are unsure which hinge you have please forward a few photos of your hinge to sales@salicedirect.com
