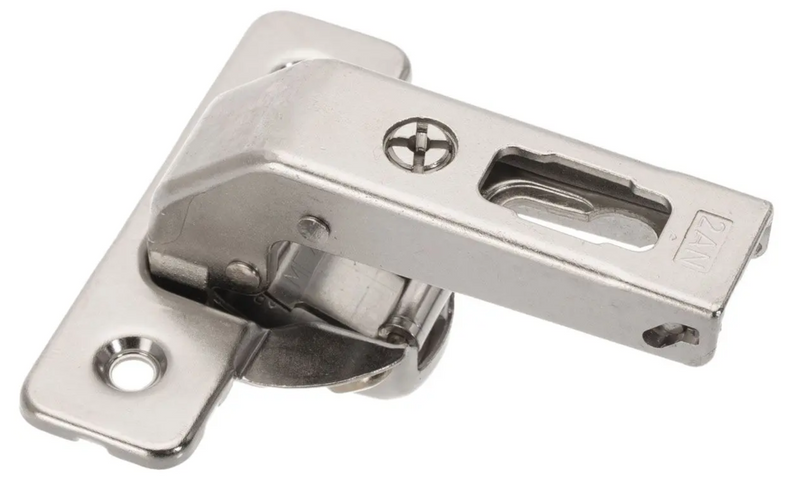

The Salice Series 200 Crampon Hinge (C2PBN99) is a self-closing concealed hinge designed for thicker wooden cabinet doors where cabinet side space is limited. Its cranked arm reduces the drilling footprint to 15×32mm — narrower than the standard 37×32mm — making it the right choice when space inside the frame is tight due to an adjacent fitting or narrow cabinet side.
Fixed with wood screws on 45mm fixing centres, it installs securely into solid wood or MDF cabinet sides without additional fixings or dowels. Doors open to 94° and the spring mechanism returns the door firmly to closed, making it suitable wherever doors need to stay shut without a separate catch or magnet.
The 35mm cup sits 11mm deep, and the drilling distance on the door (K) can be set from 3 to 9mm to suit different overlay and inset configurations. Compatible with all traditional Series 200 mounting plates using 28×32mm drilling. Note: not compatible with Domi snap-on mounting plates — if you need Domi compatibility, choose the C2_BN99AC.
Suitable for wooden doors 19–35mm thick. Part of Salice’s Series 200 range, an integrated system of concealed hinges built to cover virtually every cabinet door application.
Key details
- Cup: Ø35mm, 11mm deep
- Opening angle: 94°
- Door thickness: 19–35mm
- Door material: wood
- Cabinet side drilling: 15×32mm
- Fixing: wood screw, 45mm fixing centres
- Mounting plate drilling: 28×32mm (traditional plates only)
- Domi snap-on plates: not compatible
- Closing: sprung self-close
