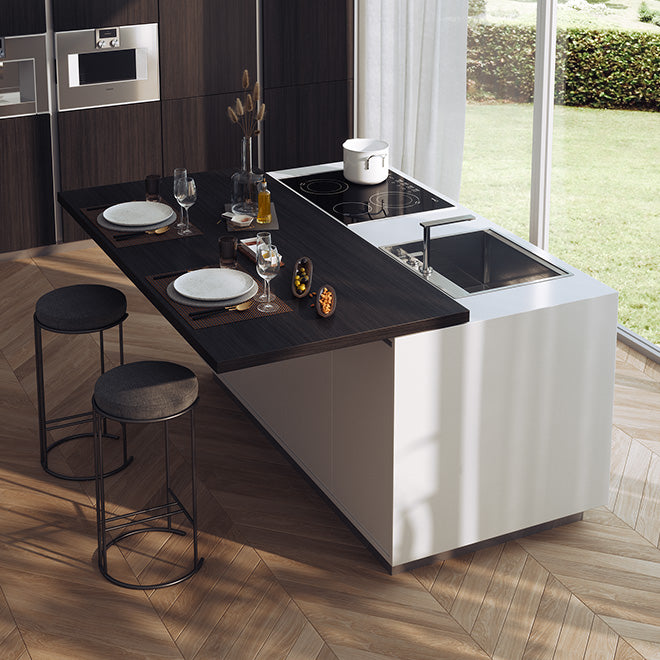

Salice Atim's Top 33 mechanism slides a table top out over the worktop, adding a wide extra surface to a kitchen island or peninsula, available in two depths.
From the Salice Top collection: transformable systems directly integrated into the worktop, allowing the space to be extended, raised or reconfigured with a simple, natural movement.
Dimensions
Letters refer to the technical drawing in the product images.
| Article | P - Depth | H - Height | L - Mechanism width | E - Top opening | Z - Top width | S - Top thickness |
|---|---|---|---|---|---|---|
| 411/78.1270.22 | 900mm | min 45mm | 900mm | 610mm | max 1800mm | min 12mm |
| 411/78.1271.22 | 1200mm | min 45mm | 1200mm | 710mm | max 1800mm | min 12mm |
Supplied as frame only, ready for a tabletop of your choice. Manufacturer's technical information available; contact us if you'd like a copy or need help choosing the right size for your cabinet.
