Description
A retro-fit SMOVE Soft-Close solution for existing doors fitted with SALICE Hinges (not other makes!)
Only ONE buffer & adaptor required per door.
Consists of 2 parts:

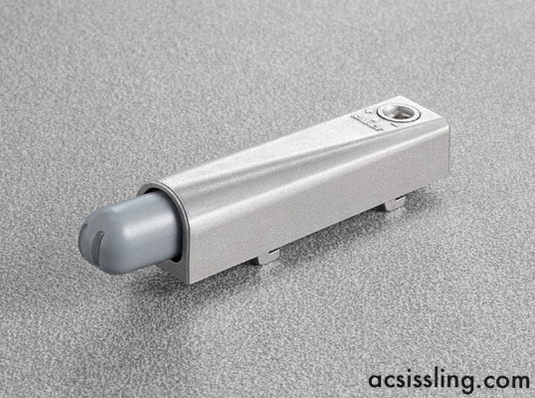

The 1st part is the SMOVEHOLDER Buffer which comes in 3 power strengths:

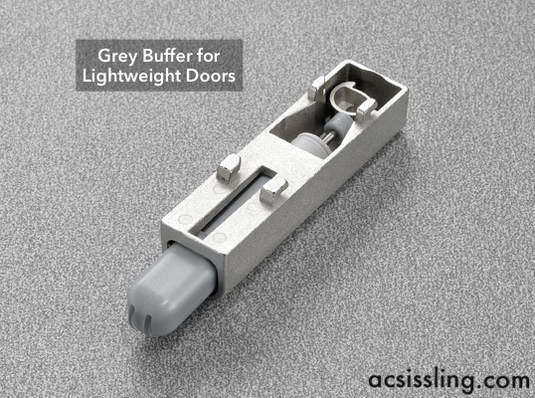

D0S7SNG - Light (Grey Piston) - For smaller and lightweight doors

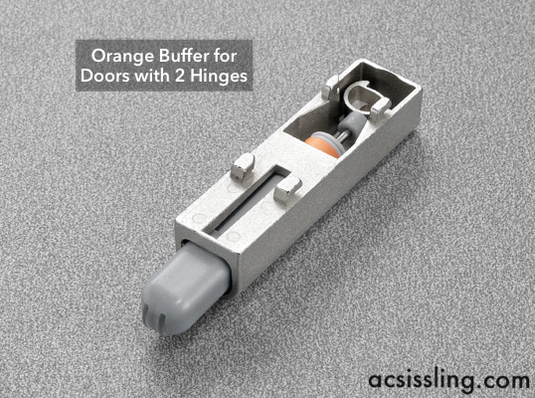

D0S8SNG - Medium (Orange Piston) - For most standard doors with 2 hinges

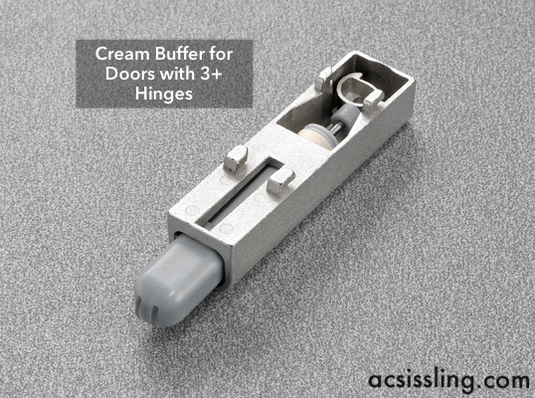

D0S9SNG - STRONG (BEIGE Piston) - For tall doors with 3 or more Hinges
Has a +/- adjustment screw for onsite adjustment to the soft-close action.

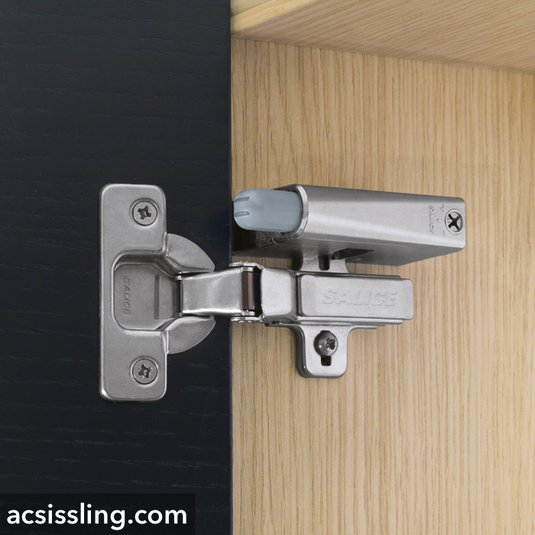

The 2nd part is the Adaptor mounting that allows the buffer to be attached to the existing cruciform mounting plate inside the carcase:
These come in 2 types and 3 heights.
For existing DIECAST Cruciform Mounting Plates (DARX**) or for existing PRESSED STEEL Cruciform Mounting Plates with edge flange (D2VX**)
Heights are:
0mm for 0mm cranked hinges for FULL and 1/4 overlay doors.
9mm for 9mm cranked arm hinges for 1/2 overlay doors.
17mm for 17mm cranked arm hinges for INSET doors
