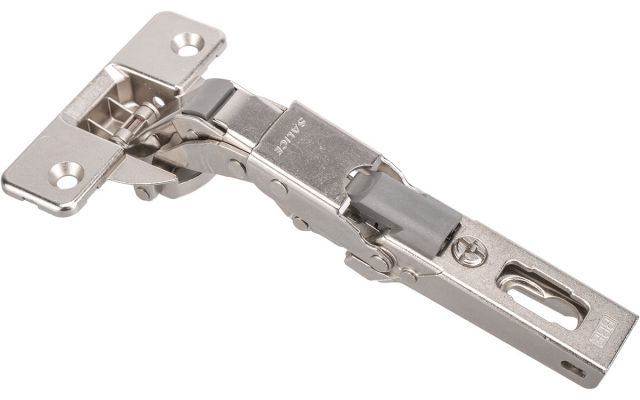

Salice Universal hinges provide a solution to a number of applications
that feature moulded edge profiles or half-inlay doors.
Please note that this is the sprung version of the hinge that self closes. This hinge does not soft close.

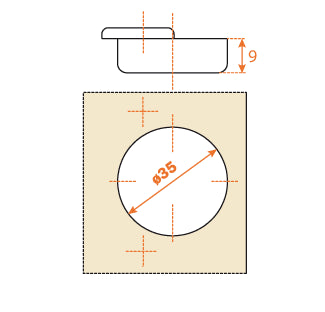

9 mm deep metal cup.
110° opening.

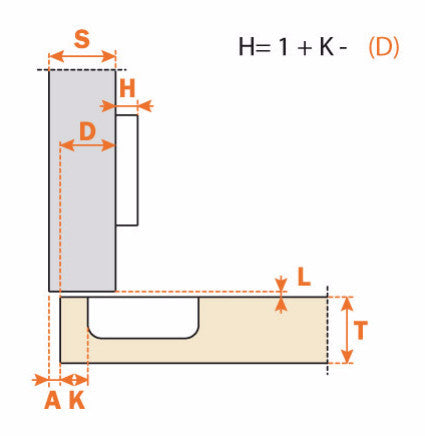

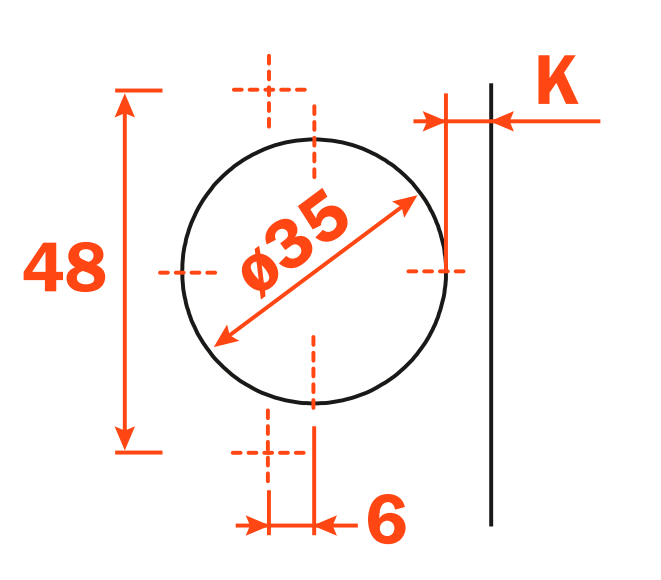

Possible drilling distance on the door (K): from 3 to 18 mm.
Compatible with all traditional Series 200 mounting plates and
with all Domi snap-on mounting plates.
Universal Hinge Info (PDF)
Sometimes this hinge may be stamped with BA2 or BB2
A version of this hinge is available for fixing to glass doors (CBG2AE9).
