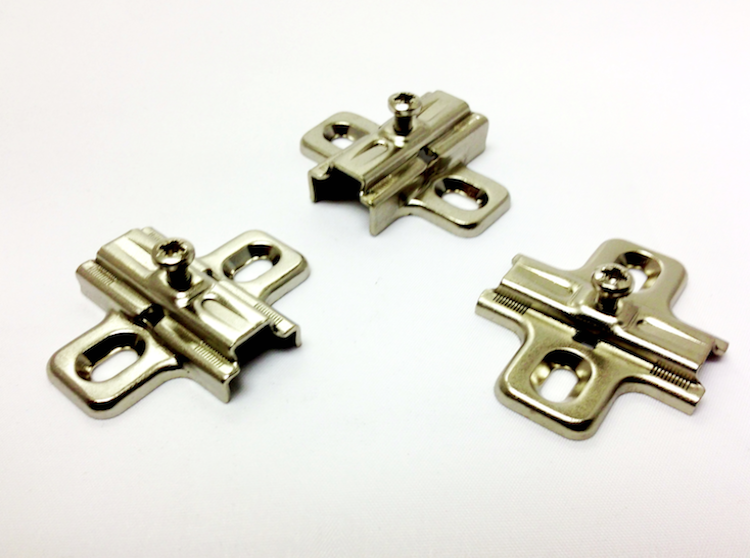

This budget pressed steel Mount Plate range does not offer any vertical adjustment to the hinge
other than the eliptic fixing slot.
Suitable for hinge ranges 200, 400, 700, 900, F & M.

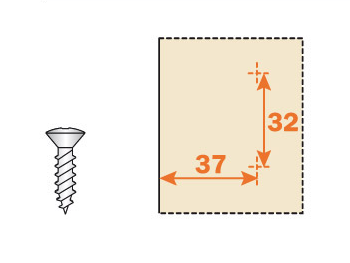

Requires 3.5mm / 6g countersunk woodscrews (not supplied)
Available in four effective heights:
B2V3HS9 - -2mm - Typically used on speciality negative angle hinges
B2V3H09 - 0mm - Typically used for FULL and 1/4 Overlay applications.
B2V3H39 - 3mm - Typically used for FULL,1/4 and 1/2 Overlay applications.
B2V3H69 - 6mm - Typically used for INSET door applications.
Description
This budget pressed steel Mount Plate range does not offer any vertical adjustment to the hinge
other than the eliptic fixing slot.
Suitable for hinge ranges 200, 400, 700, 900, F & M.
Requires 3.5mm / 6g countersunk woodscrews (not supplied)
Available in four effective heights:
B2V3HS9 - -2mm - Typically used on speciality negative angle hinges
B2V3H09 - 0mm - Typically used for FULL and 1/4 Overlay applications.
B2V3H39 - 3mm - Typically used for FULL,1/4 and 1/2 Overlay applications.
B2V3H69 - 6mm - Typically used for INSET door applications.
