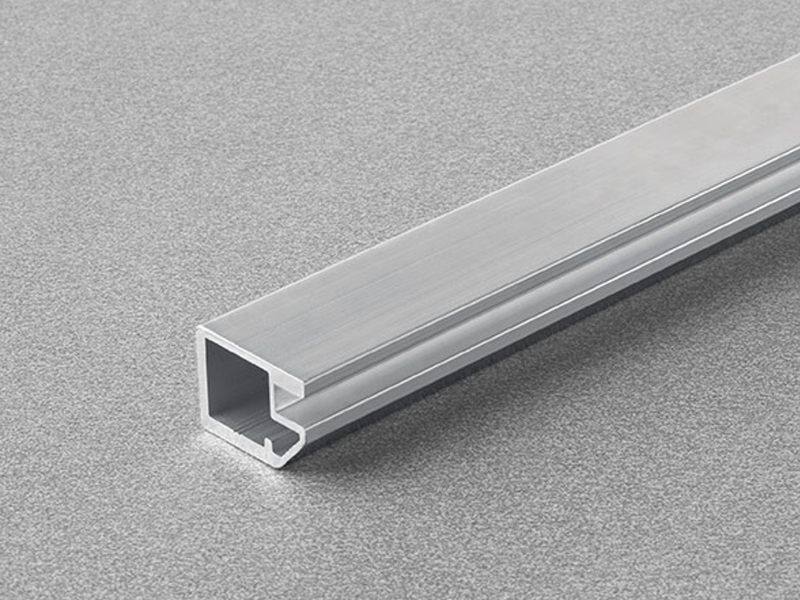

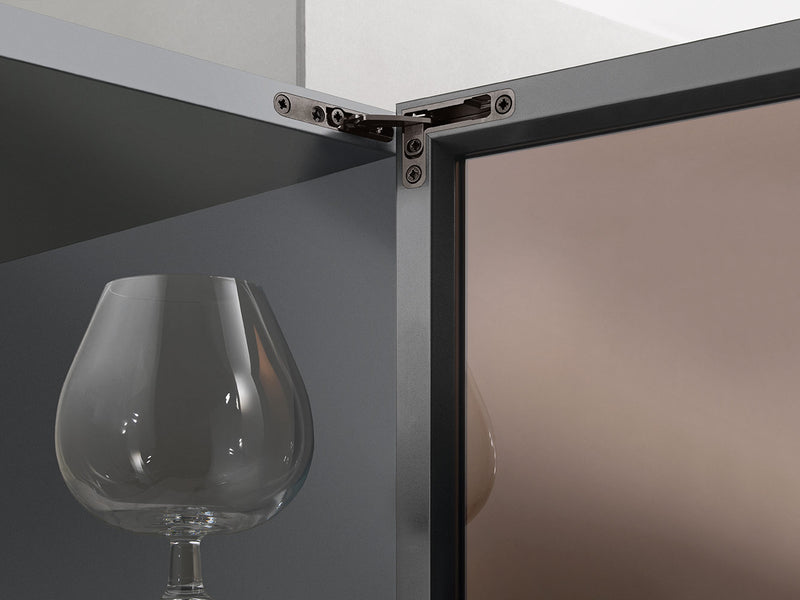

Aluminium door profile designed to be used in conjunction with the Salice Air hinges to create a sleek, stylish and modern glass framed door.
Please note it isn't recommended to manufacture doors more than 2100mm high, as the door can become noticeably flexible.
This is the tapered section version with a 19mm width. Please note that the tapered section goes to the back of the door. It is not visible when the door is closed.
The profile accepts 4mm glass. You will also need to order the plastic gasket here.

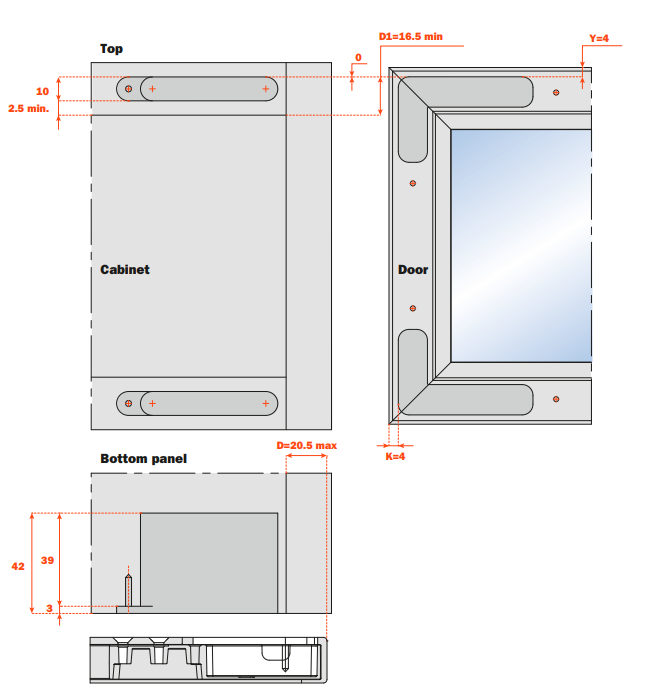

Drawings and technical information can be found here.
Please note the corner connectors are sold separately here.
Available in two finishes:
- Titanium (Metallic Dark Grey/Black) - DEL9LP300T
- Anodised Aluminium - DEL9LP300P
Priced and sold in 3 metre (3000mm) lengths.
Please note that the profiles are sold in full extruded lengths of 3m. You will need to arrange the cutting and mitreing of the profile to your own specifications. You will also need to mill or CNC the profile for the insertion of the hinges and corner connectors.
