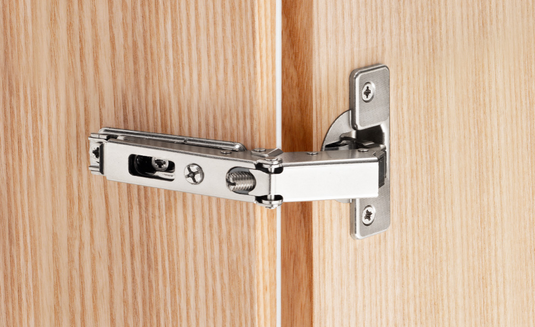

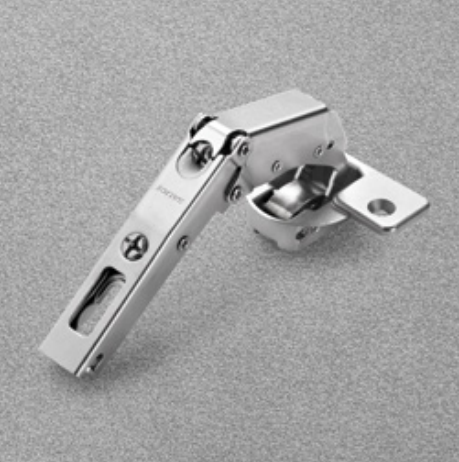

Introducing the new Salice Adjustable 65° Corner Cabinet Hinge, now with new and improved features. With its adjustable design, this hinge is perfect for corner cabinets, providing maximum functionality and flexibility. The hinge features an integral adjustment screw allowing for a +7mm and -5mm range.
Tech Details

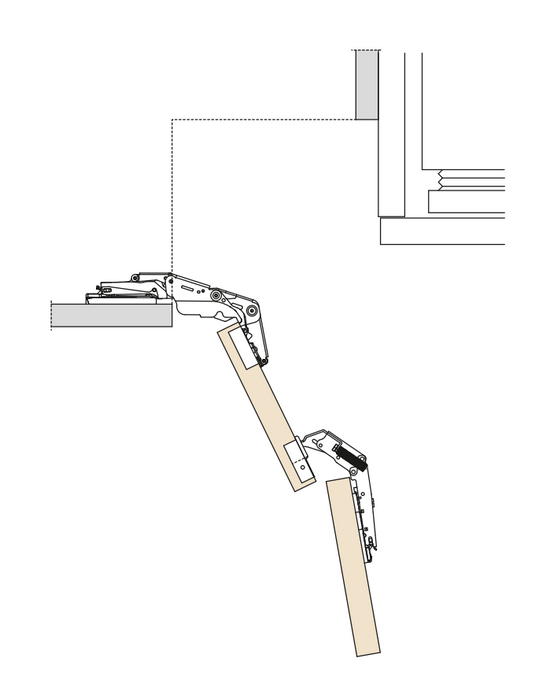

- Corner Cabinet Hinge
- 48mm screw centres
- Wood screw fixing (not supplied)
- Maximum door thickness: 25mm

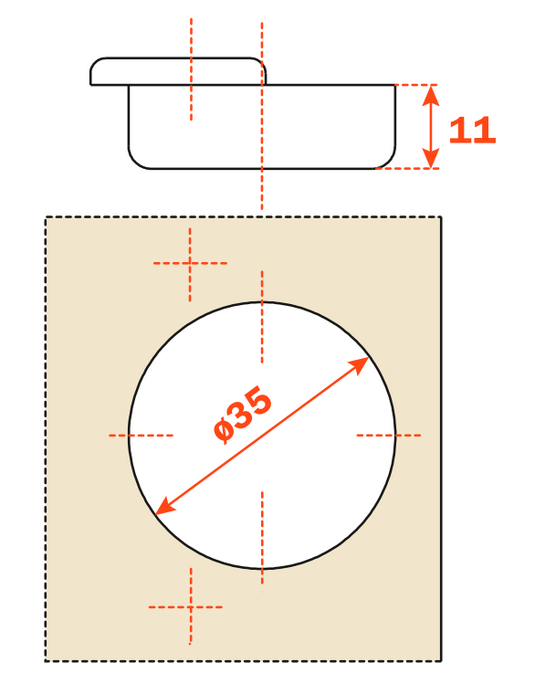

- 35mm diameter cup
- 11mm deep cup

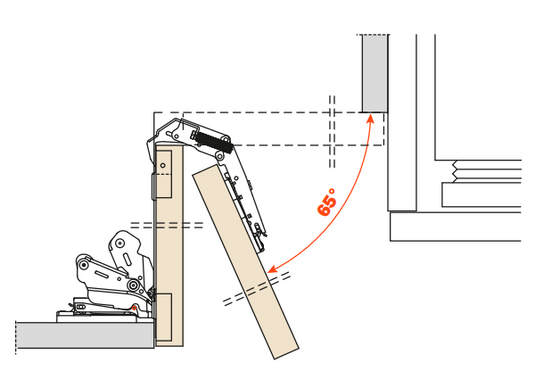

- Opening angle of the swing door: 65°

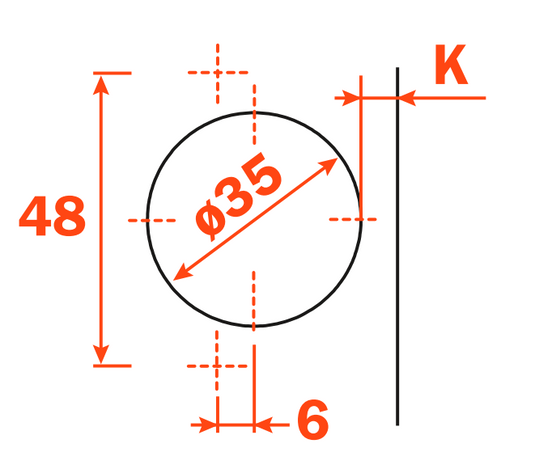

- Possible drilling distance (K): 3mm - 5mm
- For doors close to 25mm thick, max. K value is 4mm

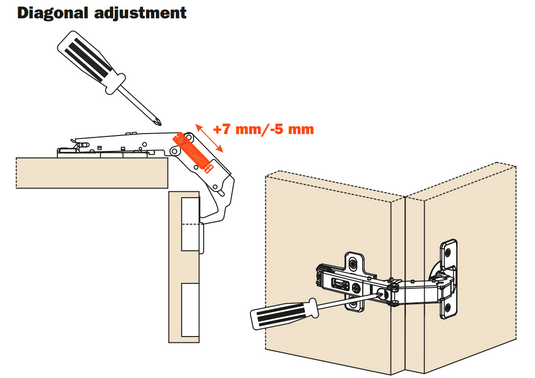

- +7/-5mm adjustment range
Description
Introducing the new Salice Adjustable 65° Corner Cabinet Hinge, now with new and improved features. With its adjustable design, this hinge is perfect for corner cabinets, providing maximum functionality and flexibility. The hinge features an integral adjustment screw allowing for a +7mm and -5mm range.
Tech Details
- Corner Cabinet Hinge
- 48mm screw centres
- Wood screw fixing (not supplied)
- Maximum door thickness: 25mm
- 35mm diameter cup
- 11mm deep cup
- Opening angle of the swing door: 65°
- Possible drilling distance (K): 3mm - 5mm
- For doors close to 25mm thick, max. K value is 4mm
- +7/-5mm adjustment range
