Conecta Hinge Kits with recessed front fixing holders.
Door overlay on hinged side is between 12.5mm and 16mm.

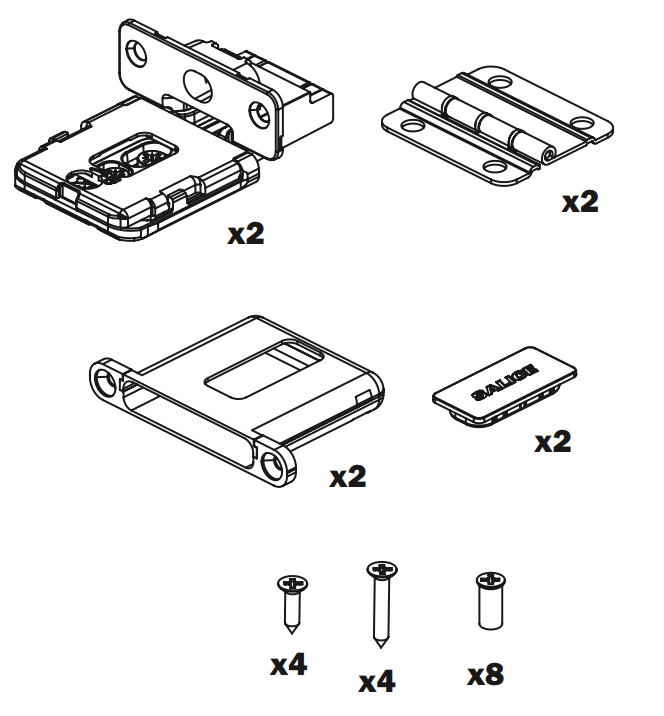

Kit contains:
- 2 x Conecta Hinges

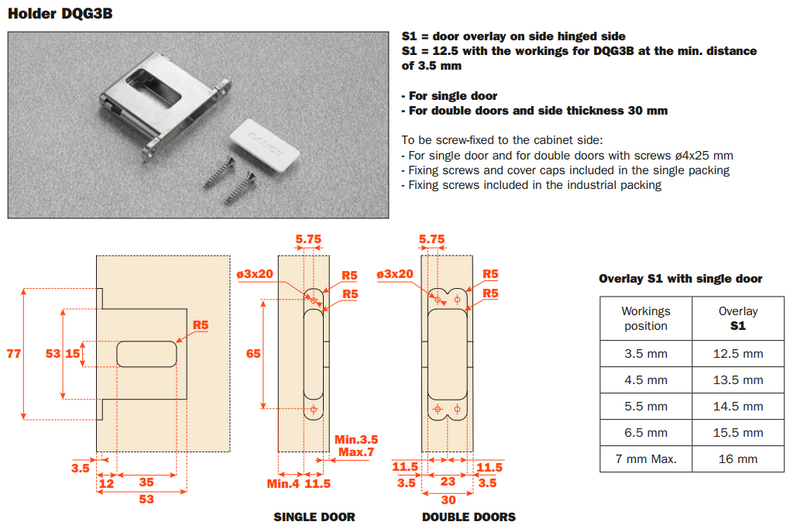

- 2 x Conecta Recessed Front Fix Holders (DQGB3) & Covers
- 2 x Centre Hinges
- All required fixings
Available in two finishes:
- Nickel
- Titanium
Please note covers for the hinges are sold separately as a kit here.
Please see the Hinges Required tab to calculate the amount of hinge kits required per system.
Key Technical Details:
- Fixing of the doors to the cabinet side with with recessed CONECTA hinges
- Fully adjustable in three directions
- Thickness of wooden door with CONECTA hinges from 18 mm to 25 mm
- Thickness of wooden door with profile VE79KITE710_A with CONECTA hinges from 22 mm to 25 mm
- Side thickness with recessed CONECTA hinges ≥ 19 mm
Description
Conecta Hinge Kits with recessed front fixing holders.
Door overlay on hinged side is between 12.5mm and 16mm.
Kit contains:
- 2 x Conecta Hinges
- 2 x Conecta Recessed Front Fix Holders (DQGB3) & Covers
- 2 x Centre Hinges
- All required fixings
Available in two finishes:
- Nickel
- Titanium
Please note covers for the hinges are sold separately as a kit here.
Please see the Hinges Required tab to calculate the amount of hinge kits required per system.
Key Technical Details:
- Fixing of the doors to the cabinet side with with recessed CONECTA hinges
- Fully adjustable in three directions
- Thickness of wooden door with CONECTA hinges from 18 mm to 25 mm
- Thickness of wooden door with profile VE79KITE710_A with CONECTA hinges from 22 mm to 25 mm
- Side thickness with recessed CONECTA hinges ≥ 19 mm
Hinges Required Chart
