Description

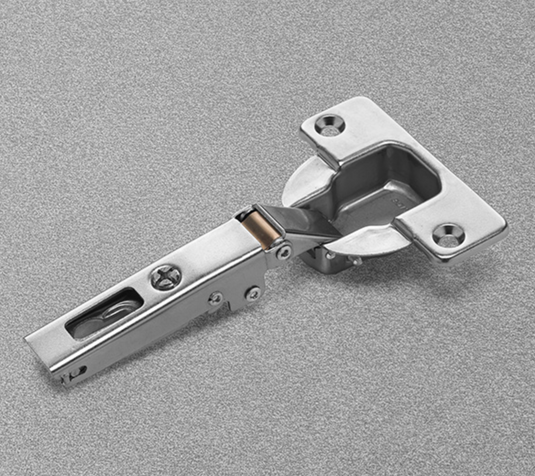

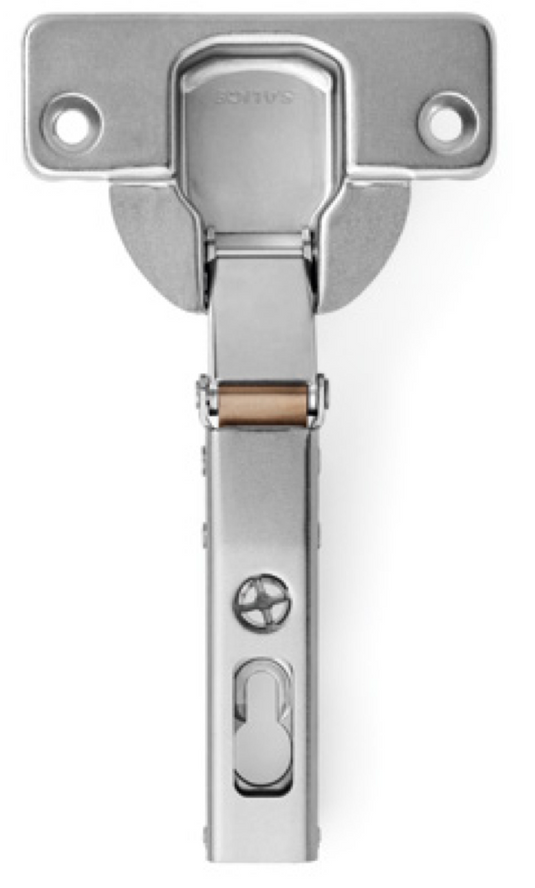

The Salice Series N hinge range is designed for profile and thicker doors up to 40mm thick.
Tech Details
- Full overlay hinge - 0mm crank
- 52mm screw centres
- Wood screw fixing (not supplied)
- To suit door thickness up to 40mm
- 40mm diameter cup
- 12mm deep cup
- 94Degree opening

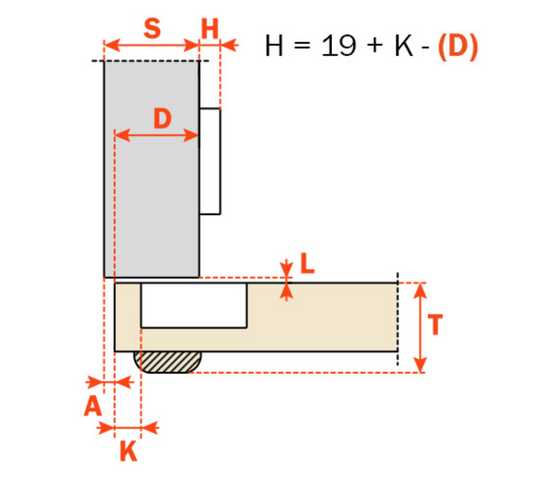

- Possible drilling distance (K): 3mm - 14mm
